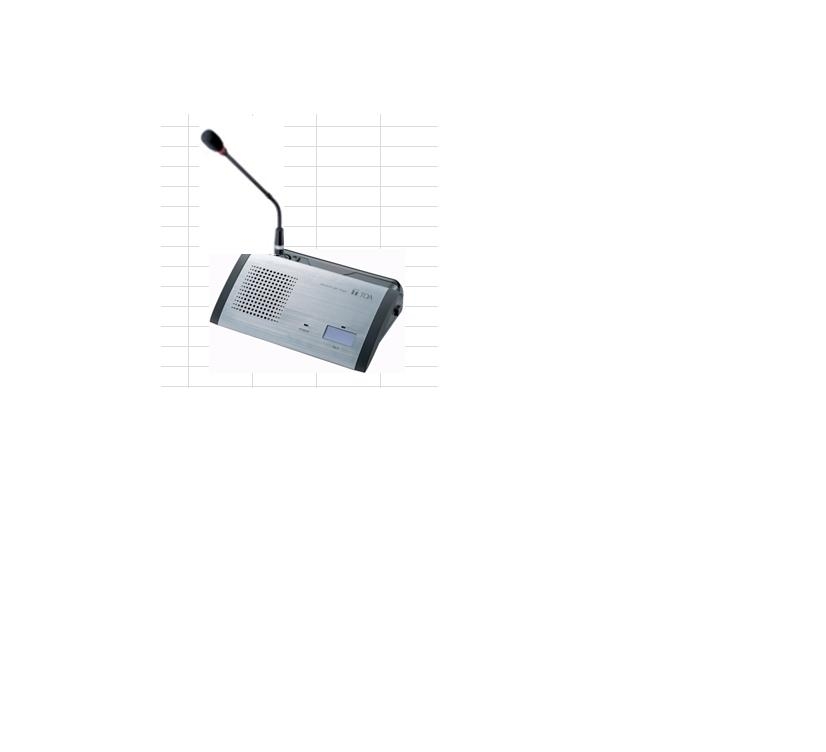

TOA Wireless Conference System Delegate Unit TS-802 with TS 903 and BP 900

• Power Source: 7.4 V DC (battery), 9 V DC (AC adapter)
  (supplied from BP-900 battery (option) or AD-0910 AC adapter (option))
• Current Consumption: Max. 270 mA
• Input: Microphone terminal: Combined type of XLR-4-31
             (dedicated for connecting the optional TS-903 or TS-904)
• Output: Monitor speaker: 8 Ω, 0.2 W
               Headphone: Mini jack ? 2
• LED Indicator: Speech indicator (flashes when the unit is out of      communications range),
  Power indicator (flashes when the unit is out of communications range or when the battery level is low)
• Battery Life: Approx. 10 hours (when the fully-charged BP-900 battery is used with During speech" to "Standby" ratio of 1:2)"
• Operating Temperature: 0? to +40?
• Finish: Top panel: ABS resin, gray metallic, paint, semi-matte
• Dimensions: 210 (W) ? 65.9 (H) ? 152 (D) mm
• Weight: 630 g
• Option: Microphone: TS-903, TS-904 (Select either one.)
               Lithium-ion battery: BP-900
               AC adapter: AD-0910

Infrared Emitter/Detector

• Wavelength : 870 nm (AM: Brightness modulation)
• Modulation Method : Frequency modulation
•  Carrier Frequency Transmission: Audio channel 1: 7.35 MHz
                   Audio channel 2: 8.10 MHz
                   Audio channel 3: 8.55 MHz
                   Audio channel 4: 9.15 MHz
                   Control channel: 6.45 MHz
                   Reception: Audio channel: 1.95 MHz
• Acceptance Angle Vertical:  90?, Horizontal: 120?
• Emission Angle Vertical: 90?, Horizontal: 120?
• Covering Range 7 m (radius)
