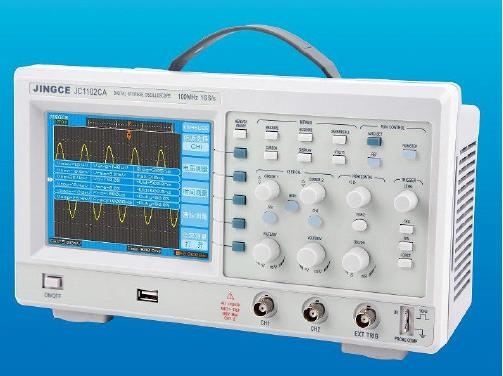

Digital Storage Oscilloscope 100MHz, model CJC1102TA 2 channels
- Easy to read with color or monochrome (NST) LCD display
- Dual- channel, bandwidth 100 MHZ
- Sample rate (real-time) 1GSa/s, equivalent sampling 50GSa/s
- 4k channel memory depth
- Advanced triggering function: edge, video, pulse, delay +,-x, / mathematic functions
- FFT spectrum analysis: hanging, hamming, blackman, rectangle
- Automatic parameter measurements: Vpp, Vamp, Vrms, Vmax, Vmin, Vtop, Vbase, Vavg
- Freq., period, rise-time, fall-time, +width, -width, overshoot, pre-shoot, +duty, -duty
- 10- waveform parameters setup and save
- Display system
- Display: color (320x 240) 5.7" LCD
- Vertical Resolution: 8 bit
- Vertical scale: 2mv- 5 v/div
- Sweep time: 2ns -50s/ div
- Rise time: 2ns- 14ns
- Power supply: 100-240v, 45-65Hz, <50w
