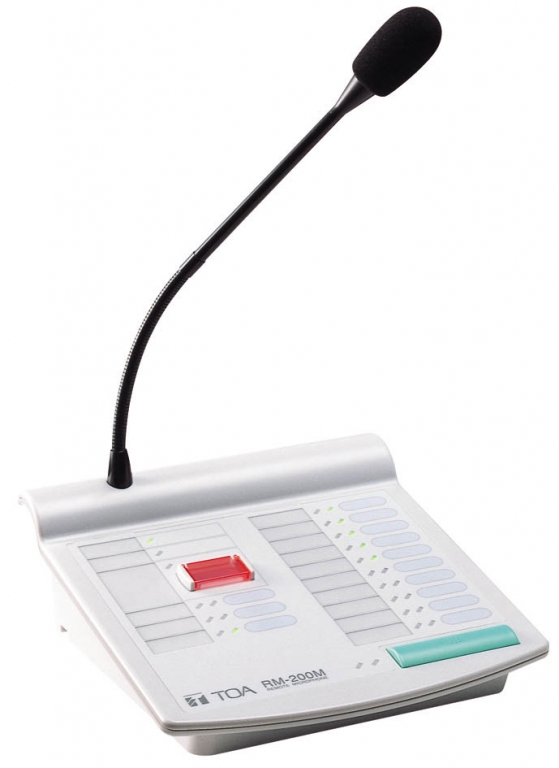

TOA Remote Paging Microphone RM-200M

TOA RM-200RM Remote Microphone

The RM-200M Remote Microphone connects to the VM-3240VA, VM-3360VA, VM-2120 and VM-2240 for the purpose of making emergency(*3)/general broadcast announcements.

Specifications:

• Power Source: 24 V DC (Operating range: 14 - 28 V DC)
             Power input jack: Non-polarity type
             Usable power input plug(*2): Outer diameter φ5.5 mm, inner diameter
             φ2.1 mm, length 9.5 mm
• Current Consumption: 100 mA or less
• Audio Output: 0 dB(*1), 600 Ω, balanced
• Distortion: 1% or less
• Frequency Response: 100 - 20,000 Hz
• S/N Ratio: 60 dB or more
• Microphone: Unidirectional electret condenser microphone
• No. of Function Keys: 13, Emergency key (covered), Talk key
• Emergency Broadcast(*3): Activation of Emergency Broadcast (pre-recorded  announcement or live
  microphone announcement) by Emergency Broadcast Switch
• Volume Control: Microphone volume control
• Connection Cable and Connector: Category 5 STP cable, RJ45 connector
• Finish: ABS resin, blueish gray (PANTONE 538 or its equivalent)
• Dimensions: 190 (W) ? 76.5 (H) ? 215 (D) mm (Gooseneck microphone excluded)
• Weight: 750 g
• Accessory: Link cable (3 m) ??1
• Option: Wall mounting bracket: WB-RM200
