TOA Volume Control ( Wall-mounted Paging Amplifier Attenuator) AT-603P (Made in Japan)

TOA Volume Control ( Wall-mounted Paging Amplifier Attenuator) AT-603P (Made in Japan)
Click Here for Larger Image
Highlights

1 year warranty

CodePH-AT-603P
Printer Friendly Tell a Friend

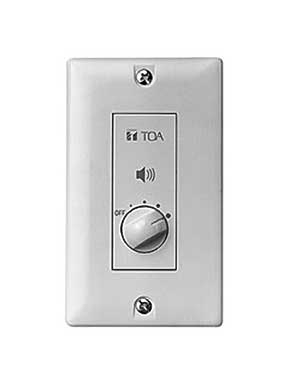

TOAv AT-603P Attenuator (by TOA of Japan)

The AT-603P is a flush-mounted wall attenuator and uses a transformer which allows connection of a wide range of loads (under 60W). Volume can be adjusted in five steps. The AT-603P features push-in terminals, each of which accepts two conductors for easy bridging.

Specification:

Input Range 0.5 - 60 W
Attenuation 5 steps (0 dB, -6 dB, -12 dB, -18 dB, OFF)
Usable Cable 600 V vinyl-insulated cable (Indoor Vinyl or Heat-resistant Indoor Vinyl cable)
Solid cable: φ0.8 - φ1.2 mm
Stranded cable (7 cores): 0.75 - 1.25 m?
Terminal Push-in connector (bridging terminal)
Finish Knob, panel, plate: ABS resin, milk white
Case: ABS resin, black
Dimensions 70 (W) × 120 (H) × 55 (D) mm (with plate)
Accessory Plate …1, Plate mounting screw …2, Box mounting screw …2




Updated by JEN 12/19/12 edited by MCT 10-24-13
