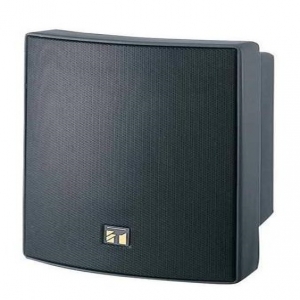

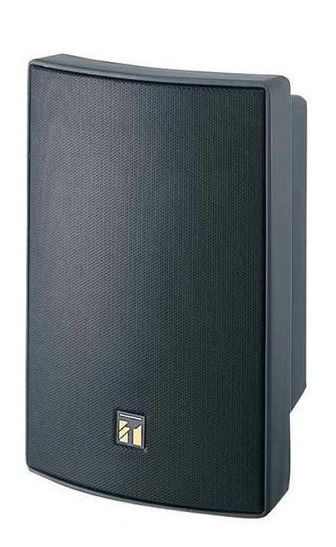

TOA BS-1030B Universal Speaker
THE TOA BS-1030B has exceptional sound quality and value for a wide variety of applications. Available in black and white, the versatile BS-1030 is designed for both indoor and outdoor use with a durable ABS resin enclosure and steel mesh grille. The two-way, bass-reflex design features a 4.72? (12 cm) cone woofer, 1? (2.5 cm) dome tweeter and built-in multi-tap transformer with screwdriver-adjustable power taps. A transformer bypass setting allows direct 8-ohm operation. Installation is fast and easy with the supplied mounting bracket or rear panel keyholes for horizontal or vertical surface-mounting. The BS-1030 speakers are backed with a five year warranty.
* Note: For outdoor installation, it is recommended that they are installed under roofs, eaves, or in other locations not directly exposed to rain or snow.
Feature:
Specification:
| Enclosure | 2-way bass-reflex type |
|---|---|
| Rated Input | 30 W |
| Rated Impedance | 8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) |
| Sound Pressure Level | 90 dB (1 W, 1 m) |
| Frequency Response | 80 Hz - 20 kHz |
| Speaker Component | 12 cm cone-type + dome-type |
| Speaker Cord | 2-core cabtyre cord with diameter of 6 mm |
| Operating Temperature | -10 ? to +50 ? |
| Water Protection | IPX4 (can be installed vertically or horizontally.*) |
| Finish | Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK, powder coating |
| Dimension | 196 (W) × 290 (H) × 150 (D) mm (unit only) |
| Weight | 2.5 kg (unit only) |
| Accessory | Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2 |
| Option | Applicable bracket: WCB-13B, SP-410 Applicable stand: ST-16A |
For more info. please click this link: http://www.toa.jp/products/pa_speakers/sp_box_speakers/bs-1030b.html
Updated by JEN 12/21/12 edited by MCT 10-26-13
