TOA Projection Speaker PJ-200W

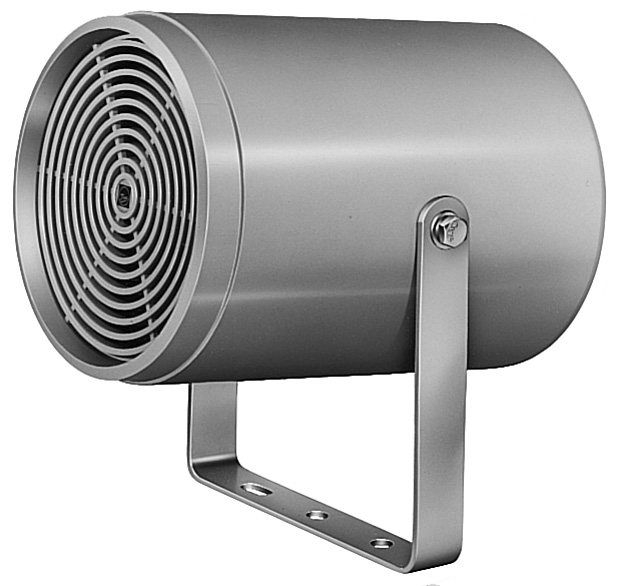

TOA PJ-200W Projection Speaker

The PJ-200W Projection Speaker is designed for indoor use. The built-in terminal board provides an easy cable connection and allows bridge wiring. Its wide frequency range makes it suitable for use in both paging and BGM applications

Specifications:

• Rated Input: 20 W (50 V, 70 V, 100 V Line)
• Input Impedance: 100 V Line : 500 Ω (20 W), 1 kΩ (10 W), 2 kΩ (5 W)
               70 V Line : 250 Ω (20 W), 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5W)
               50 V Line : 125 Ω (20 W), 250 Ω (10 W), 500 Ω (5 W), 1 kΩ (2.5 W),
               2 kΩ (1.25 W)
• Preset Impedance: 500 Ω
• Sound Pressure Level: 95 dB (1 m, 1 W) at 1 kHz
• Speaker Diameter: 16 cm
• Frequency Range: 50 ? 20,000 Hz
• Finish: Cabinet, Cover : ABS Resin, Off-White
              Bracket : SPCC, Off-White
• Dimensions (W?H?D) : 200(7.87") ? 255(10.04") ? 250(9.84") mm
• Weight: 2.5 kg (5.51 lb.)

For more info. please click this link: http://www.toa.jp/products/pa_speakers/interior_speakers/pj-200w.html

Updated by: JEN 12/21/12 edited by MCT 10-26-13
