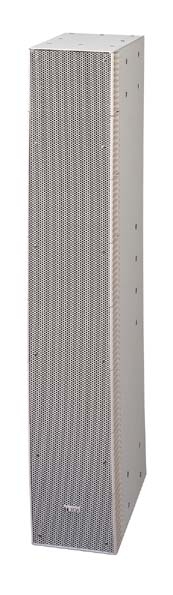

TOA 2-Way Line Array Speaker System SR-S4S

TOA CSR-S4S 2-Way Line Array Speaker System

The TOA (Japan) SR-S4S is a two-way line array speaker ideal for short distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601 Matching Transformer.

Specifications:

• Power Handling Capacity: Continuous program: 600 W (single-amp mode)
                                Low 240 W, High 240 W (bi-amp mode)
• Rated Impedance: 8 Ω (single-amp mode)
                                Low 8 Ω, High 8 Ω (bi-amp mode)
• Sensitivity: 93 dB (1 W, 1 m)
• Frequency Response: 70 - 20,000 Hz (when using DP-0206 (option))
• Crossover Frequency: 3,500 Hz
• Directivity Angle: Horizontal: 90?, Vertical: 10?
• Speaker Component: Low frequency: 10 cm cone-type ? 8
                                 High frequency: 2.5 cm balanced dome-type ? 24
• Input Connector: M5 screw terminal, distance between barriers: 12.2 mm
  and Neutrik NL4MP ? 2
• Finish: Enclosure: MDF, white, paint
              Front grille: Punched steel plate, white, acrylic paint
• Dimensions: 160 (W) ? 892 (H) ? 303 (D) mm
• Weight: 16 kg
• Accessory: Bi-amplifier drive rating label ?1, Bi-amplifier drive input indication label ?1
• Option: Matching transformer: MT-S0601, Extension plate: SR-EP4,
               Flying bracket: SR-FB4, Wall tilt bracket: SR-TB4,
               Stand adapter: SR-SA4, Protection pad: SR-PP4,
               Digital processor: DP-0206
