TOA Extension Remote Microphone RM-210S

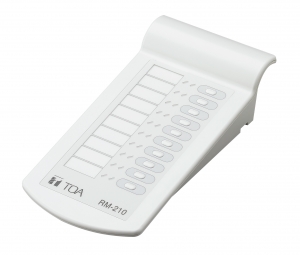

TOA RM-210S Extension Remote Microphone

The RM-210 is an extension unit for increasing the number of function keys of TOA's Remote Microphones.

Specifications:

• Current Consumption: 20 mA max. (in terms of RM-200M's DC power input)
  75 mA max. (in terms of DC power inputs of RM-200X and RM-200XF)
  80 mA max. (in terms of DC power inputs of RM-200SA and RM-200SF)
• Connection: Connection by way of dedicated cable
• Number of Function Keys: 10
• Finish: ABS resin, blueish gray (PANTONE 538 or its equivalent)
• Dimensions: 110 (W) ? 76.5 (H) ? 215 (D) mm
• Weight: 350 g
• Accessory: Extension cable ??1, Linkage bracket A ??2, Linkage bracket B ??1,
  Screw for linkage bracket ??12
• Applicable Unit (option): RM-200M, RM-200SA, RM-200SF, RM-200X, RM-200XF

BROCHURE:
http://www.toa-products.com/international/download/spec/sx2000sm_cb1e.pdf

Updated by JEN 12/19/12 edited by MCT 10-24-13
