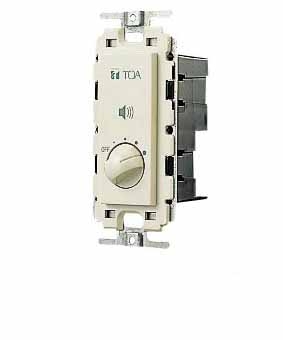

TOA AT-303P Attenuator
The CAT-303P is a flush-mounted wall attenuator and uses a transformer which allows connection of a wide range of loads (under 30W). Volume can be adjusted in five steps. The CAT-303P features push-in terminals, each of which accepts two conductors for easy bridging.
Specifications:
| Input Range | 0.5 - 30 W |
|---|---|
| Attenuation | 5 steps (0 dB, -6 dB, -12 dB, -18 dB, OFF) |
| Usable Cable | 600 V vinyl-insulated cable (Indoor Vinyl or Heat-resistant Indoor Vinyl cable) Solid cable: φ0.8 - φ1.2 mm Stranded cable (7 cores): 0.75 - 1.25 m? |
| Terminal | Push-in connector (bridging terminal) |
| Finish | Knob, panel, plate: ABS resin, milk white Case: ABS resin, black |
| Dimensions | 70 (W) × 120 (H) × 55 (D) mm (with plate) |
| Accessory | Plate …1, Plate mounting screw …2, Box mounting screw …2 |
For more info. please click this link: http://www.toa.jp/products/pa_speakers/speaker_accessories/at-303p.html
Updated by JEN 12/19/12 edited by MCT 10-24-13
