TOA Wide Range Weatherproof Speaker CS-64

Highlights

1 year warranty

CodePH-CS-64

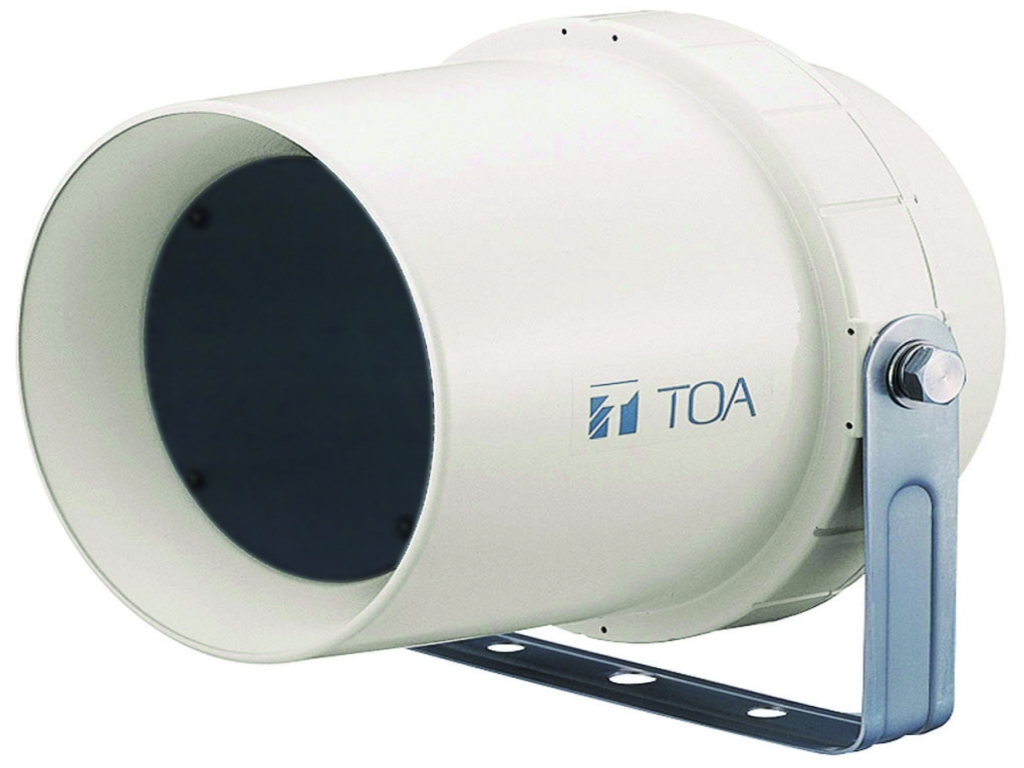

TOA CS-64 Wide Range Weatherproof Speaker

The CS-64 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-64 employs the rotary switch that facilitates impedance changes.

  • Exponential horn improves directivity characteristics and ensures uniform and clear sound dispersion.
  • Lightweight ABS resin enclosure that is mechanically strong and resistant to impact.
  • Weatherproof polyurethane resin paint permits the speaker to stand up to many years of outdoor installation.
  • Stainless steel hardware protects the speaker from corrosion.
  • The enclosure complies with IP-64 Standards for dust proof and waterproof characteristics.
  • Rotary impedance selector switch facilitates external changes in impedance during and after speaker installation.
Specification
Rated Input 6 W
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 96 dB (1 W, 1 m)
Frequency Response 130 - 13,000 Hz
Speaker Component 12 cm cone-type (treated for splash proof)
Speaker Cord 2-core cabtyre cord with diameter of 6 mm
Temperature Range -20? to +55?
Finish Horn, cover: ABS resin, off-white, paint
Bracket: Stainless steel
Panched net: Surface treated steel plate, dark-gray, powder coating
Screw: Stainless steel
Dimensions 233 (W) ? 224 (H) ? 208 (D) mm

For more info. please click this link: http://www.toa-corp.co.uk/asp/catalogue/products.asp?linkid=8&prodcode=CS-64

Updated by JEN 12/21/12 edited by MCT 10-25-13
