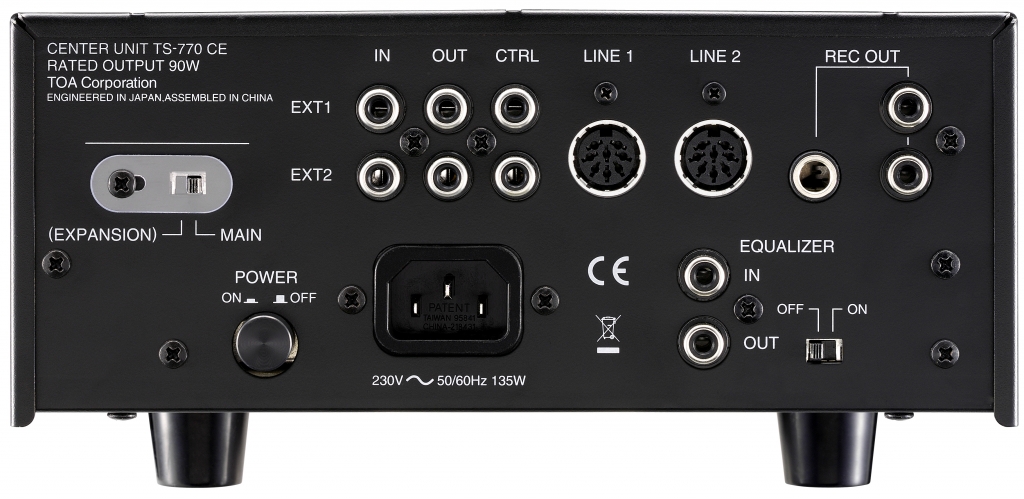

TOA Wireless Central Unit TS-770

TOA Wireless Central Unit TS-770

The new TS-770 Series Conference System is ideal for conferences and meetings in government,  corporate, educational and hotel applications. The new system provides communications for conferences and boardrooms. The easy to use CTS-770 Series is comprised of the CTS-770 Central Unit supporting up to 70 chairperson / delegate stations.

Features

• Easy to set up and operate
• Up to 70 Chairperson/Delegate stations per CTS-770 Central Unit
• Supports system expansion up to (3) CTS-770 Central Units for a total of 210 Chairperson/Delegate stations in one system
• Telephone or PC Remote Delegate station operation using the CTS-775
• All Microphones ON Record function
• External source inputs and PA/record outputs
• System Test function

• Supports up to (70) CTS-771 Chairperson and CTS-772 Delegate Stations

• Aux, Line and Mic inputs
• Up to six simultaneous speakers
• All mics open record function
• PA/Record output
• System Test function
• Person speaking automatic Time-Out function (selectable)
  • OFF
  • 20 seconds
  • 40 seconds

For Full Documentation, pls visit TOA website  http://www.toaelectronics.com/conf_ts_770.asp

• What are the items needed for a complete WIRELESS conference system? You need the following

1. Chairman's unit - has priority over all mics and controls which delegate(s) are allowed to speak. There is only 1 Chairman's unit
2. Delegate units -  delegate mics based on the required maximum number of particiipants in a meeting.
3. Central Unit - controls Transmit/Receive functions
4. Infrared/Transmitter Receiver
5. Battery Charger Unit
6. Audio amplifier - to drive the speakers
7. Speakers. Alesis and Quest wall speakers are best suited for this application
