Leviton DDS15-BDZ 15 Amp Dual Voltage 120/277VAC Decora Digital Switch and Timer with Bluetooth Technology
Decora Digital Switch and 24 hour Timer 1800W Incandescent (120V), 15A Fluorescent (120V), 6A Fluorescent (277V), 5A 600W LED/CFL (120V), 15A Resistive (120V), 1/2 HP Motor (120V), Single Pole and 3-way/multi-location control with LED locator. White face assembled on device, Ivory and Light Almond faces included.
Brand Features:
The next generation of lighting control technology is here with the new Decora® Digital Controls with Bluetooth® technology - a powerful device combining the best of Leviton dimmer and timer functions with today’s technology. Just use your smartphone or tablet and the Decora Digital Dimmer & Timer app to control, adjust and time lighting for daily activities or to ensure a “lived-in” look while away. Decora Digital Controls with Bluetooth technology provide local control within a 30 foot* range without the need of a hub, gateway or internet connection, bridging the gap between traditional dimmers and whole-house automation systems.
Technical Information:
- Switch Type: Single-Pole, 3-Way or More Applications
- Style Name: Decora
- Timer Type: 24 Hour
- Type: Digital
- Wireless Connectivity: Bluetooth
- Load Type: Incandescent, LED, CFL, Fluorescent, Resistive, Motor
- Load Rating: 1800W Incandescent, 15A Fluor (120V), 6A Fluor (277V), 600W LED/CFL, 15A Resistive, 1/2 HP Motor
- Voltage: 120/277VAC, 60Hz
- LED Color: Green
- Light: LED Indicator
- Action: Rocker Switch for ON/OFF
- Wallplate: Order Separately
- Color: White, Ivory, Light Almond
- Standards and Certifications: CSA, NOM, Bluetooth SIG, FCC, Title 24 Compliant
- Warranty: 5 Year Limited
- Ordering Notes: Incl White, Ivory and Light Almond Color Kit
- Available Colors: Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T
- Wiring Notes: Neutral required
Features and Benefits:
- Digital circuitry provides programmable soft fade on and fade off
- Ability to set maximum light level for energy savings
- App is Compatible with Apple and Android smartphones or tablets
- Uses simple, intuitive on-screen menu options

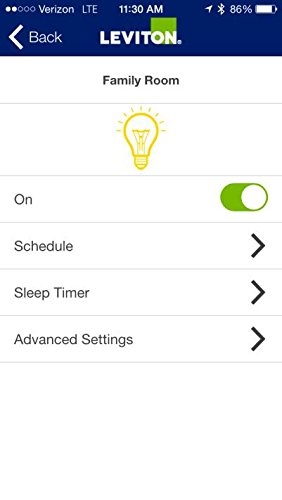

- Individually control and program dimmers and switches within the home
- Each device can be uniquely named for easy identification

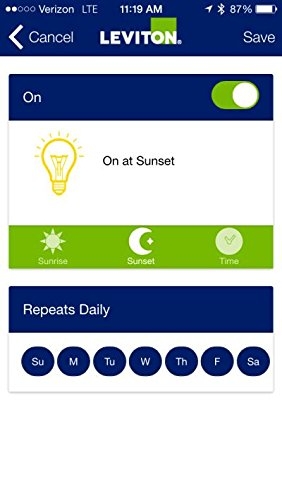

- Flexibility to program timed events weekdays,weekends or any combination of days at set or random times
- Astronomical clock automatically adjusts to local sunrise/sunset times
- Automatic daylight saving time adjustment
- Countdown sleep timer can be set for up to 12 hours
- LED locator light can be turned off via app
- Dimmer brightness display can be turned off via app
- Single pole or 3-way/multi-location control with Decora Digital remote (sold separately)
- No fins for multi-gang installation
- Built-in radio/TV interference filter
- Neutral wire required
