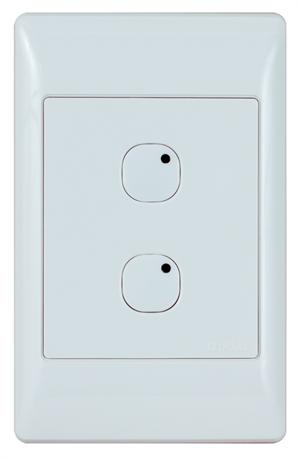

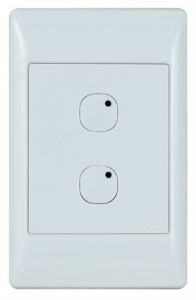

Omni-Bus 2-Button, Hardwired, White

Omni-Bus 2-Button, Hardwired, White
Omni-Bus is a distributed control system for lights, shades, fans, shutters, pumps, and more. Utilizing the worldwide DIN rail standard for mounting, Omni-Bus controls CFL, LED, electronic low voltage, Halogen, and incandescent lighting. Output devices are rated for 110/220/240V 50-60Hz markets unless otherwise noted. All wall stations are 24VDC and below. Modular Omni-Bus components can be located where needed to save wiring and installation costs. Elegant, multi-button programmable wall stations eliminate the expense of in-wall high voltage wiring to multi-way switches.

Features and Benefits

• Two button hardwired wall station
• Controls dimmer, power switch, relay, or an input into Leviton Security & Automation controller
• LED indicates status of load scene
• Supply voltage: 15-24VDC (via bus network cable)
• Supply current: 30mA maximum
• Ambient Temperature: 0 – 40 ºC (32 – 104 ºF)
• Ingress Protection: IP20
• 6 Channels
• For use with Leviton Omni-Bus output devices and scene controllers
• All modules are CE, FCC, UL (ETL), SASO, and C-Tick approved
• Leviton Part Number: OB133-W

Support

• Product Specification and Data Sheet - 2-Button, Hardwired, White
• Software - Omni-Bus Installation
• Part Number List - Omni-Bus Devices Power Consumption
