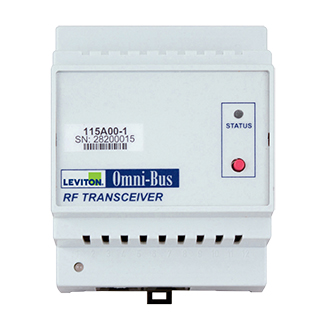

Omni-Bus RF Transceiver Din Rail

Omni-Bus RF Transceiver Din Rail
Omni-Bus is a distributed control system for lights, shades, fans, shutters, pumps, and more. Utilizing the worldwide DIN rail standard for mounting, Omni-Bus controls CFL, LED, electronic low voltage, Halogen, and incandescent lighting. Output devices are rated for 110/220/240V 50-60Hz markets unless otherwise noted. All wall stations are 24VDC and below. Modular Omni-Bus components can be located where needed to save wiring and installation costs. Elegant, multi-button programmable wall stations eliminate the expense of in-wall high voltage wiring to multi-way switches.

Features and Benefits

• Wireless transceiver for use with Omni-Bus wireless wall station interfaces including 113A00-2, 113A00-4 and 113A00-7, and keyfob remotes 125A00-1 and 125A00-2
• This transceiver can also be used to provide expanded wireless range for the Omni-Bus network
• Multiple RF transceivers can be used in one Omni-Bus system for expanded wireless range
• Bus side supply voltage: 15-24VDC (via bus network cable)
• Bus side supply current: 50mA maximum
• Ambient Temperature: 0 – 40 ºC (32 – 104 ºF)
• Ingress Protection: IP20
• Memory capacity (linked devices): 56
• RF Frequency: 433.92MHz
• Transmit Range: Up to 30m (98 feet).
• All modules are CE, FCC, UL (ETL), SASO, and C-Tick approved
• Leviton Part Number: OB151

Support

• Product Specification and Data Sheet - Omni-Bus RF Transceiver DIN Rail Module
• Software - Omni-Bus Installation
• Part Number List - Omni-Bus Devices Power Consumption
