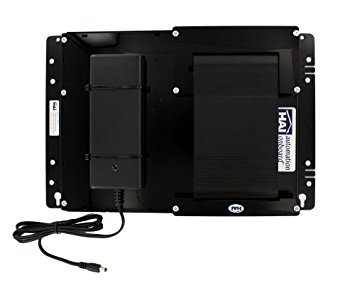

Eight Port PoE Switch with Structured Wiring Backplate.
Features and Benefits
- Mounted on a custom structured wiring backplate, the Eight Port PoE Switch will provide power to up to seven OmniTouch 7 Touchscreens
- This switch is plugged into a power outlet and is connected by one network cable to the home or facility network
- Power Source Equipment (PSE) device that is fully compatible with IEEE 802.3af standard compliant devices
- Powers up to seven Leviton Security & Automation OmniTouch 7 Touchscreens (one port must be connected to the network)
- PoE ports can also power other powered devices (such as the Leviton Security & Automation HTX2, PoE IP cameras,
- PoE Wireless Access Points, etc.) without additional power wiring to the device
- Each PoE port can provide 15.4 watts of power and 10/100M data transmission through traditional CAT-5 cable to the Powered Device
- Leviton Part Number: TS912
Support
- Product Specification and Data Sheet - Omni Eight Port PoE Switch
- Users Guide - 8-Port PoE Network Switch
- Users Guide - 8-Port PoE Network Switch - French
- Users Guide - 8-Port PoE Network Switch - Spanish
