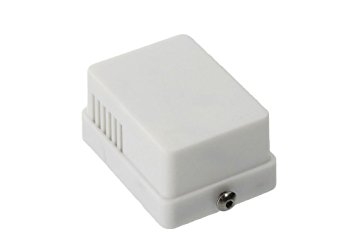

Surface Mount Remote Indoor/Outdoor Temp Sensor
Features and Benefits:
- The Surface Mount Remote Indoor/Outdoor Temperature Sensor may be mounted in the conditioned space and the thermostat can be mounted remotely for protection from tampering or for aesthetic reasons
- This sensor may be used by Omnistat2 thermostats as an outdoor sensor for dual fuel heat pumps
- This sensor uses twisted pair, shielded cable from the Omnistat2 or Omnistat thermostat to its location
- For distances up to 100 feet, typical twisted pair, PVC-insulated, shielded cable may be used
- For distances from 100-150 feet, twisted pair with polypropylene insulated conductors, shielded must be used
- For distances from 150-250 feet, twisted pair with foam-polyethylene insulated conductors, shielded must be used
- Wire runs must not exceed 250 feet
- The Remote Sensor must be mounted in the same location appropriate for a thermostat for best performance (for example, on an inside wall, free of draft from vents, away from sunlight, windows, etc.)
- This small (2 W X 1.5 H X I D inches) unit is mounted on the surface of the wall
- This sensor will work with any Omnistat2 thermostat
- Leviton Part Number: EM231
