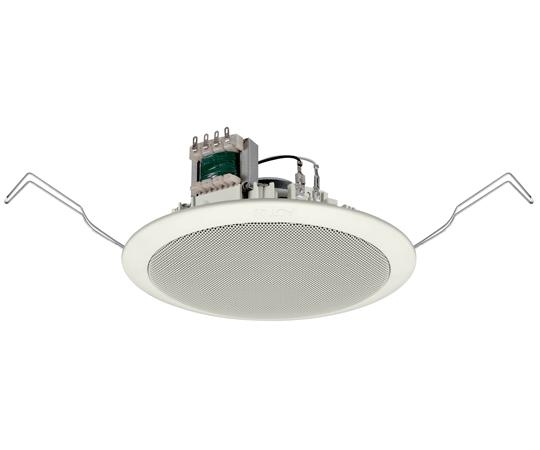

TOA CPC648R Ceiling Mounted Speaker
TOA (Japan) ceiling speaker. Integrated with a resin panel and speaker frame, the CPC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.
Specifications:
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
|---|---|
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise) |
| Frequency Response | 100 - 18,000 Hz (peak -20 dB) |
| Speaker Component | 12 cm (5") cone-type |
| Dimensions for Fixing Hole | Mounting hole: φ145±5 mm (φ5.71"±0.2") Ceiling thickness: 5 - 25 mm (0.2" - 0.98") |
| Speaker Mounting Method | Spring clamp |
| Finish | Baffle: Polypropylene resin, off-white (RAL 9010 or equivalent color) Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint |
| Dimensions | φ168 × 77 (D) mm (φ6.61" × 3.03") |
| Weight | 470 g (1.04 lb) |
| Accessory | Paper pattern …1 |
For more info. please click this link: http://www.toa.jp/products/pa_speakers/celling_speakers/pc-648r.html
updated by JEN 12/19/12 edited by MCT 10-24-13
