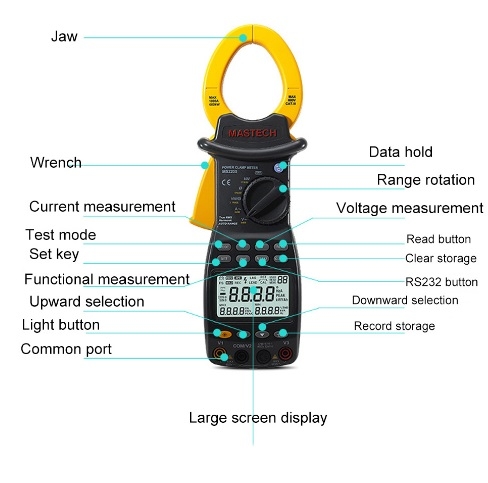

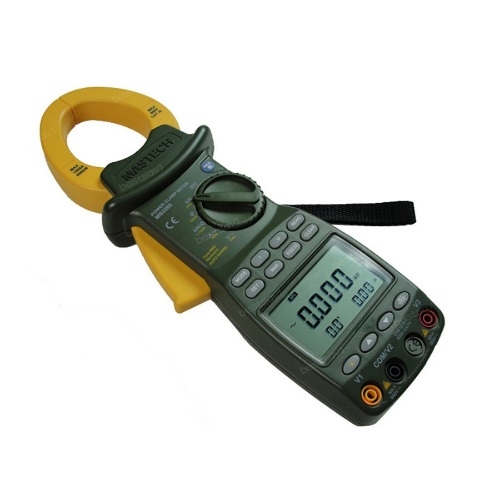

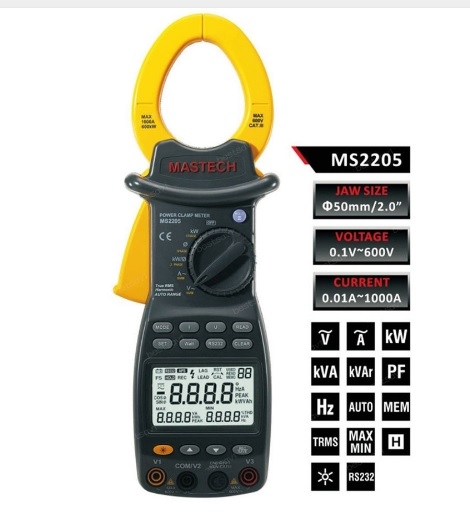

Mastech MS2205 3 Phase Power Clamp Meter Power Factor
Features:
1.Large dual 6000 counts LCD display
2.Measures AC voltage, AC current, active power, apparent power, reactive power, power factor, frequency and harmonic
3.True RMS measurement
4.It is equipped with a large-size memory for saving up to 100 groups of test parameters
5.Low battery indication
6.Data hold and auto power off
7.RS232 interface and analysis software
|
Specifications |
|
|
|
Function |
Range |
Accuracy |
|
AC Current(A) |
20/40/100/200/450/1000A |
±2% |
|
AC Voltage(V) |
80/180/400/600V |
±1.0% |
|
Active power (kVA) (three phase) |
3/12/30/120/150/600kVA |
±3.0% |
|
Active power (kW) (single phase) |
30/60/120/150/300/600kW |
±3.0% |
|
Passive power(kVAr) |
3/12/30/120/150/600 kVAr |
±3.0% |
|
Power factor |
0.3cap to 0.3ind |
±3° |
|
Frequency(Hz) |
30~1000Hz |
±0.5% |
|
Harmonic measurement |
Fundamental frequency:50/60Hz |
±3% |
|
(Level of each order |
Windows width:256 points/cycle(50/60Hz) |
|
|
and THD-F/THD-R) |
Windows type:Rectangular |
|
|
|
Orders analyzed:1 to 20th |
|
|
Display |
LCD 6000 |
|
|
MAX.diameter for conductor |
φ50mm |
|
|
Power supply |
4 X 1.5V AA |
|
|
Dimensions |
300mm X 103mm X 51 mm |
|
|
Weight |
500g |
|
Package:
Posted by MCT 07-02-13 Edited : Christin 4/25/17
