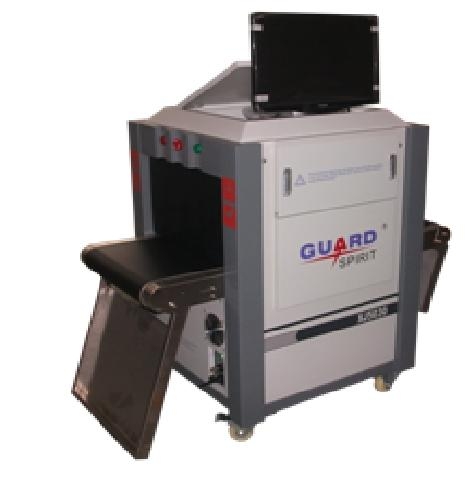

X-Ray Baggage Inspection Machine

X-Ray Baggage Inspection Machine

Model: CN-XJ5030

Features:

*High resolution images

*Simple User-friendly operation

*Strong Image storage capacity

*Automatic Self-diagnostic maintenance system

*One Key shutdown control

Parameter:

*Tunnel Size…………..500mm(W)*300mm(H)

*Load Weight……........40Kgs

*Conveyor Speed……...0.2-0.23m/s

*Radiation Leakage……0.25μG/h

*Penetration……………12mm steel

*X-ray Resolution……….32 AWG

X-Ray Generator:

*X-ray Beam Direction……..From bottom

*Beam Divergence……….. 60°

*Tube Voltage……………...90Kv

*Electronic Current…………0.5mA

*Cooling……………………Sealed oil cooling + 100% Dutycycle

Image Function:

*X-ray Converter Arrangement…. Single Energy L-shaped photodiode array detector

*Maximum Image Resolution…….1024*768

*Image Storage……………………100,000pcs

*Image Display Color………………Black/White

*Grey Level…………………………65536

*Zone & Zoom…………………..... 1-9 image zones, 2?4?8 times zooming

*Other Function……………………Alarm, Review, Density Enhancement, Negative/positive image,

Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection,

Dangerous Alarm, System Failure Alarm etc…
