Features
1) High Efficiency
2) 12V DC standard output
3) CE,TUV junction box
4) Lifetime:25 years
5) Warranty:2 years
6) 90% power 10 years
7) 80% power 20 years
Characteristics
Specification:
| Model | SSB50W-12 |
| Nominal power Pm | 50 Watt |
| Power allowance | ±10% |
| Optimized working voltage Vm | 17.13V |
| Optimized working current Im | 2.91A |
| Open circuit voltage Voc | 21.63V |
| Short circuit current Isc | 3.12A |
| Module efficiency | 14.13% |
| Withstanding voltage | 715 |

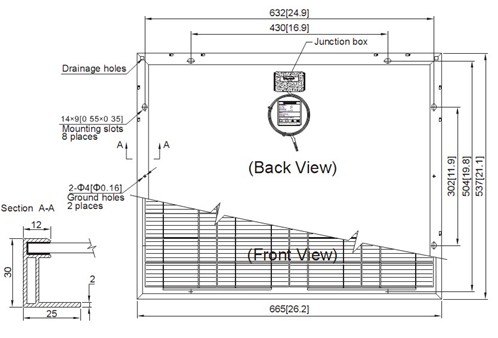

| Dimension of module (mm) | 655Ã?668Ã?35 |
| Net weight (kg) | 6.2 |
| Packing (pcs/carton) | 2 |
| Dimension of package (mm) | 821Ã?709Ã?90 |
| Volume (m3) | 0.06 |
| Gross weight (kg/ carton) | 15 |
| Dimension of pallet (mm) | 850Ã?950Ã?1950 |
| Quantity in a 20â?? container | 24carton/palletÃ?12pallet =288carton (576pcs) |
| Time returnable and replaceable | 2 year |
| Power attenuation | 10year?10%20 year?20% |
