Sliding gate opener

AUTOMATIC SLIDING REMOTE CONTROL GATE OPERATOR FOR 600 kg SLIDE GATES.

Supplier is one of the oldest and best manufacturer in China, supplying US and European market among others.

Aluminum base, cooper worm-gear inside, weather proof case.

Detailed descripton:

1) For Residential Sliding Gate.

2) Automatic open, close, stop. Auto-clsoe timer is adjustable(set your gate to close within 15 s, 45 s, 60 seconds).

3) Over-load and Over-heat protecting function.

4) Inner layer is made of environmental polyurethane foam with reinforced stell.

5) The normal color is off-white and can be painted any colors as customer's requests.

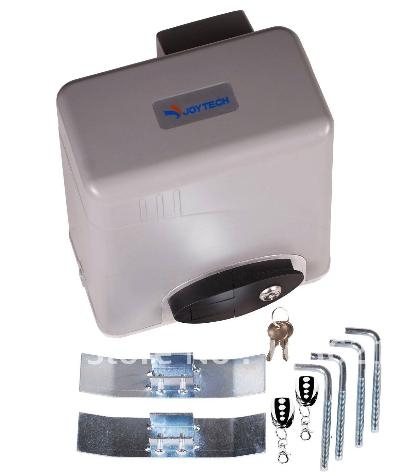

 Standard Package Contains:

• CN-PY600AC Motor
• Control Board
• 2 Remote Controls (Transmitters)
• Photocell sensors
• Manual Rlease Key
• Installation Manual.

 Optional Accessory: Metal gear rack or nylon rack, beacon light, wireless keypad, extra remote control.

 AT600 Sliding Gate Opener, gate operator, sliding gate opener

This electromechanical reduction gear operator is designed for domestic and middle range collective applications. The small size allows setting it in reduced areas. The sliding gate must be well made (rigid). It must operate smoothly when it is moved manually on a perfectly horizontal rail.

Domestic and collective applications (400 cycles/day), weight of gate up to 600kg, a built-in electronic control unit is included.

Function & Performance,

• Oil bath mechanical driving
• Max gate weight 600kg;
• Miniaturized design (260HX220WX120L),
• Quiet, durable, great pulling, frequently usage,
• Built-in electronic control unit,
• Untouched magnetic induction range limited switch,
• Restorable thermal protecter,
• Torque adjustable system,
• 2 separated program (full open or half open)
• Automatic delay closing after gate opened (delay time adjustable/cancel)
• 2 channels for remote control
• Can be connected wired/wireless switch (1 or 3 button manual switch)
• Non dialing remote control (digicoder above 100 million)
• 2 leaves sliding function does not need an extra controlling unit.
• When opening /closing, slowing down operation act at the end of stroke (reduce impact, exact orientation )
• Flash light or illunimunation power output, and pre-alarm light function
• Opening/closing photocell input,
• Long life ,low noise, exempt maintenance,
• Extending port reserved for system upgrade.

Technical  Data.

• Max Gate Weight:    600kg
• Operating Voltage:  220V , 50HZ (or other optional.)
• Max Power Rating:  350W
• Gate Speed:             9.5m/min
• Operating Temp:     -25 C  to +70 C
• Motor Speed:            1400 rpm
• Motor Weight:           11.5 kg
• Material:                  Aluminum

Notes:

• We don't install the gate itself, we only supply and install the remote control electronics.
• The gate must be working smoothly and efficiently in manual (push-pull) mode. Any obstructions or mechanical gate defects must be fixed before we install the control.
• This is for SLIDING gate only. For swinging or other types, refer to other section of our site
• 6 months limited warranty parts and labor. Liability limited only to repair or replacement of defective items.

Installation parts and labor: P8,000

Additonal remote control: P2,200

Arrival time: 15 days after payment, from China

Updated by: ABM 2016-10-18
