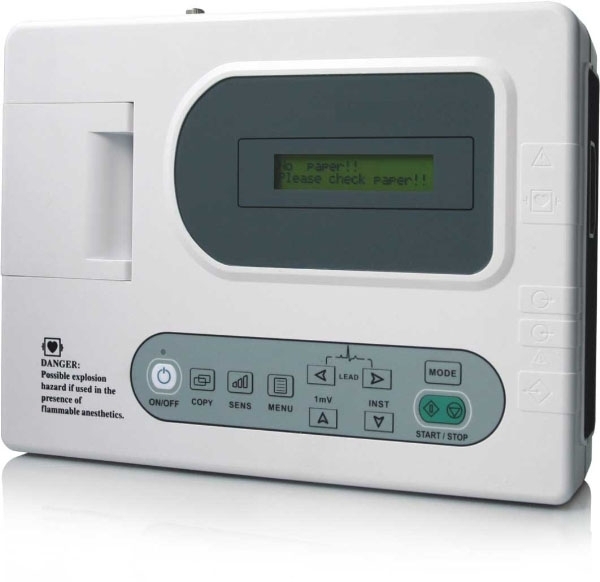

ECG machine Three-channel model CMT-9103
Features
* Automatic measurement and analysis of common ECG parameters.
- Digital isolation technology is for minimizing component drift v/s time& temperature to guarantee high-adaptability of the equipment to the environment.Digital signal processor for effective inhibition of baseline drift, AC interference filter, EMG interference filter and the heart rate, to guarantee the authenticity and dependability.
- With function of rhythm lead for observing abnormal ECG waveform & heart rate, Automatic Measurement and Interpretation of ECG waveform to relieve doctors from strain.
- Roll recording paper for digital ECG is 63mm in width, can simultaneously show 12 lead waveforms and print out three real time lead waveforms.
- Built-in RS232 interface, USB interface is optional.
- Concept of floating input circuit meets IEC safety standard.
Specification
Lead: Standard 12 Leads
Acquisition Mode: Simultaneously 12 leads acquisition
Record Mode: manual mode, auto mode1, auto mode2, auto mode3
Filter: AC filter; EMG filter
CMRR: >100dB (with filter)
Input Circuit: floating input circuit, with protection circuit against defibrillation
Input loop Current: ≤0.1μA
Input Impedance: ≥2.5MΩ
Patient Current Leakage: ?10μA
Calibrating Voltage: 1mV?2?
Skin Voltage Tolerance: ?500mV
Time Constant: ≥3.2s
Frequency Response: 0.05?150Hz(-3dB)
Noise Level: ?15μVp-p
Sensitivity Threshold: ≤20μV
Inter-channel Interference: ≤0.5mm
Paper Speed: 25?50mm/s??3??
Sensitivity: AUTO,2.5,5,10,20mm/mV
Recording System: Thermal-array System
Recording Paper Specifications: 63mmx30m, Roll Paper
LCD: 192?64 LCD, Display waveform, Chinese and English menu and working status
Safety Standard: GB9706.1-1995, IEC class I, type CF
Power Supply: AC: 220V / 110V, 50/60Hz, 30VA
DC: 14.4V (2000mAh) rechargeable battery
Fuse Specification: AC time lag: T500mA/125V (110V)
T400mA /250V (220v)
DC time lag: T2A/250V(110-230V)
